Model Whirlpool 1233^1A GAS RANGE – Common Parts & Diagrams

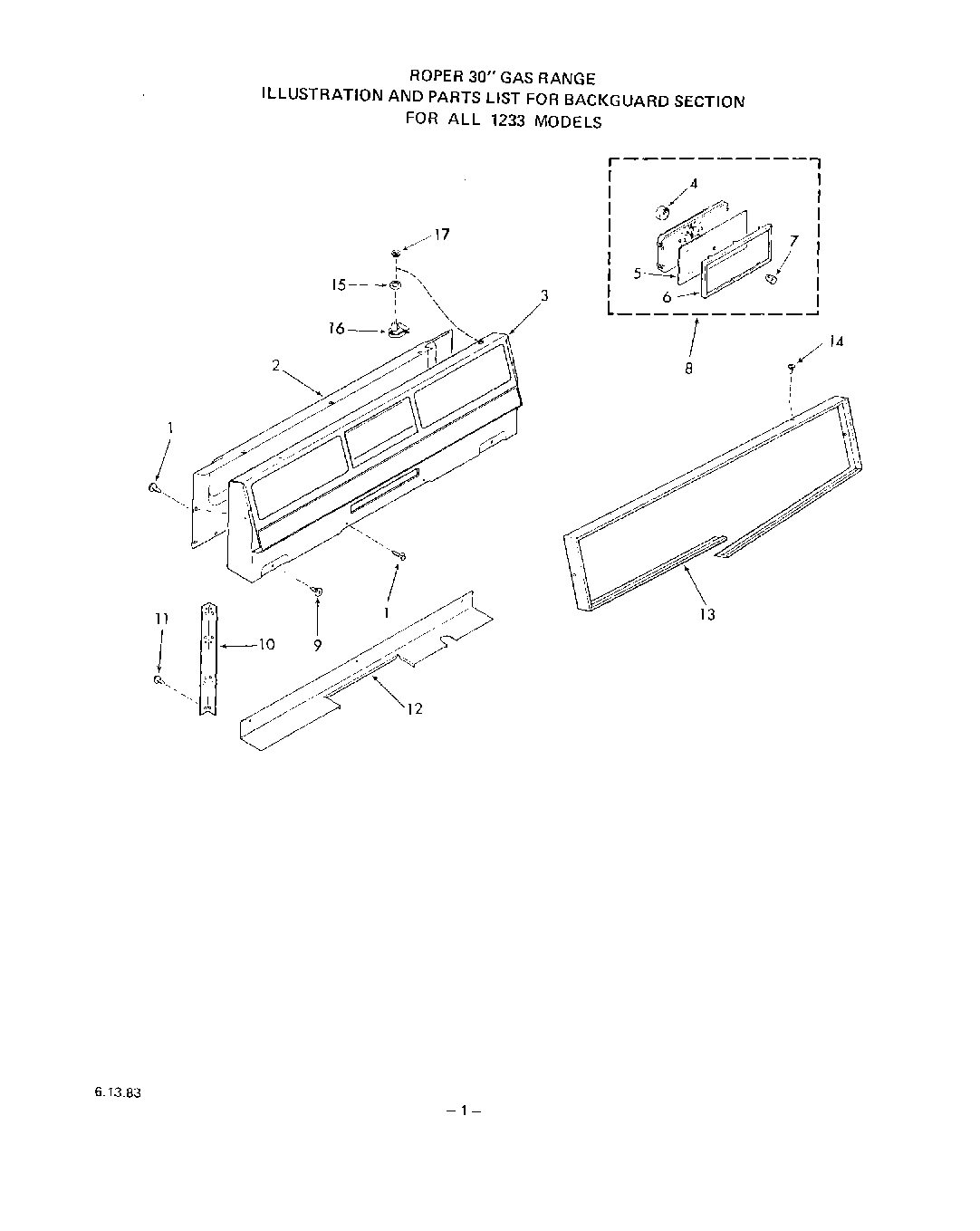

01 - BACKGUARD

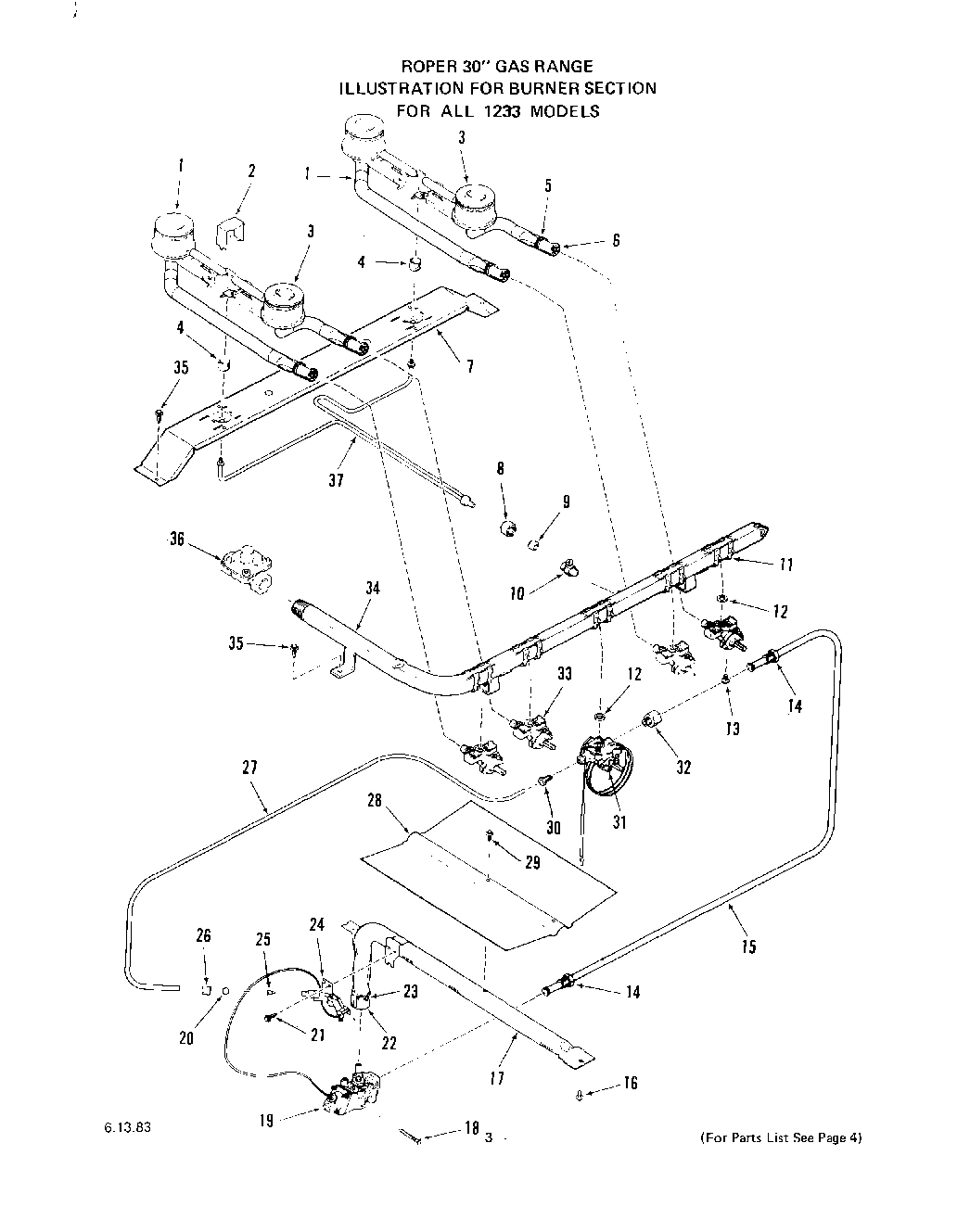

03 - BURNER

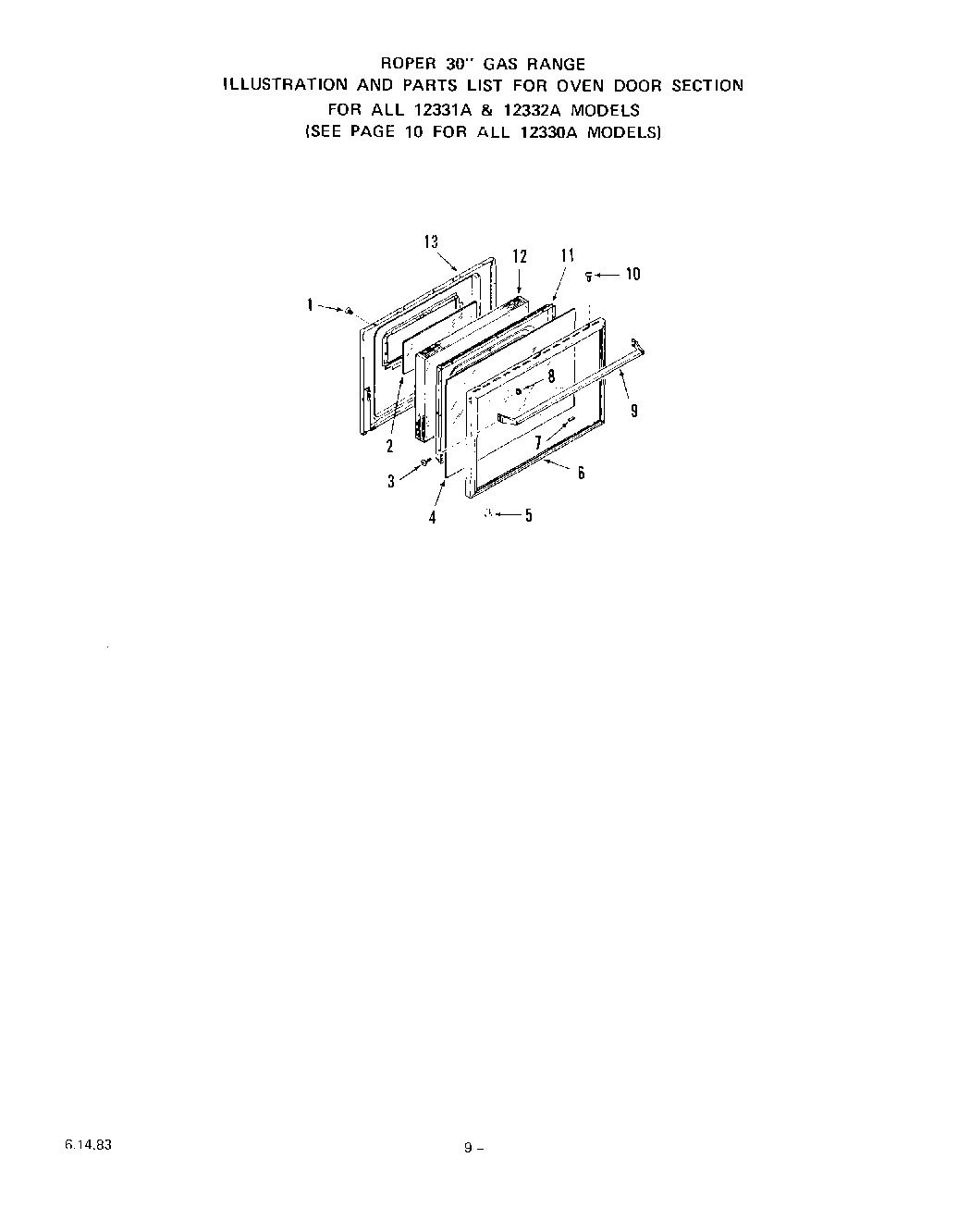

07 - SECTION

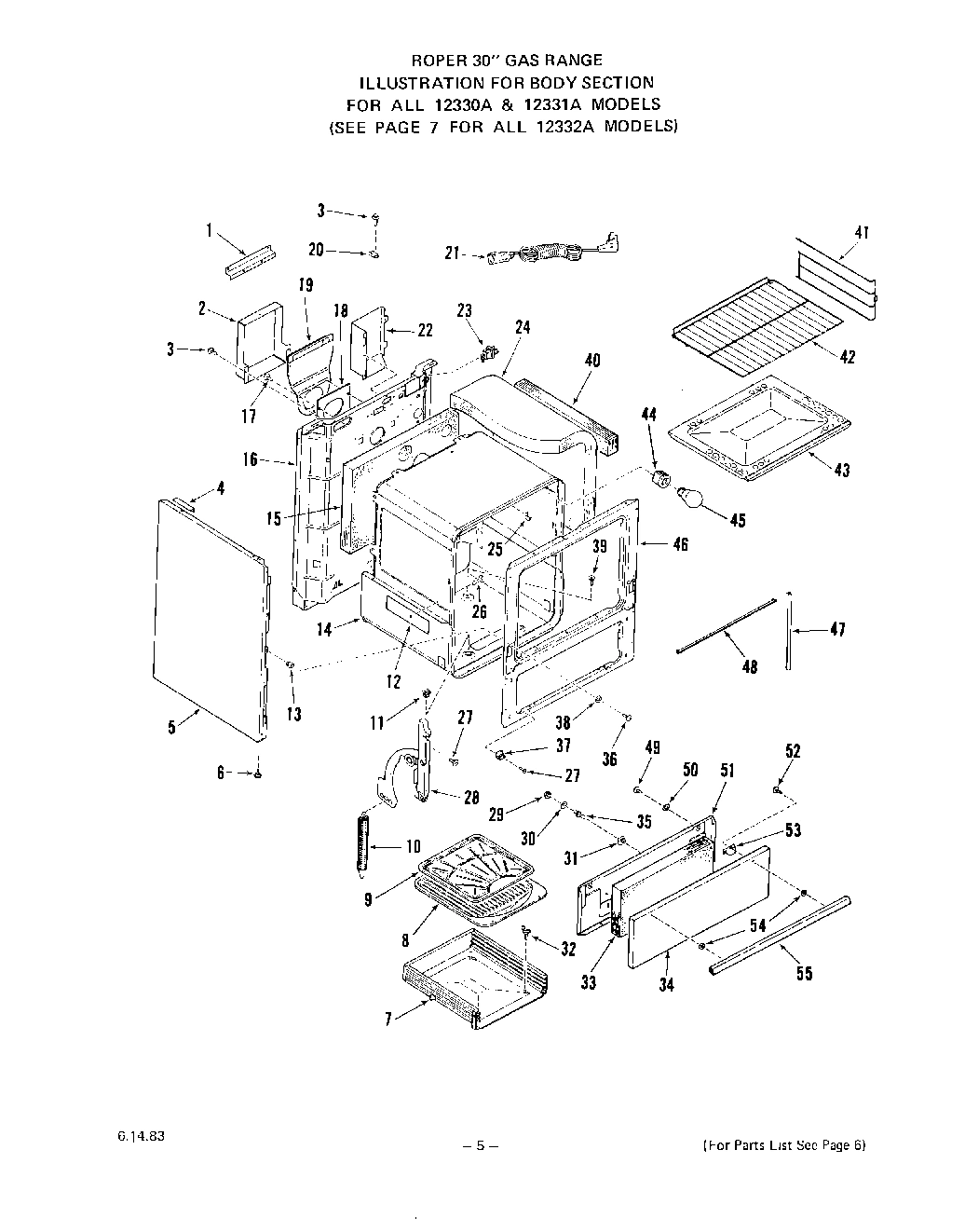

05 - SECTION
10 - SECTION
06 - OVEN DOOR

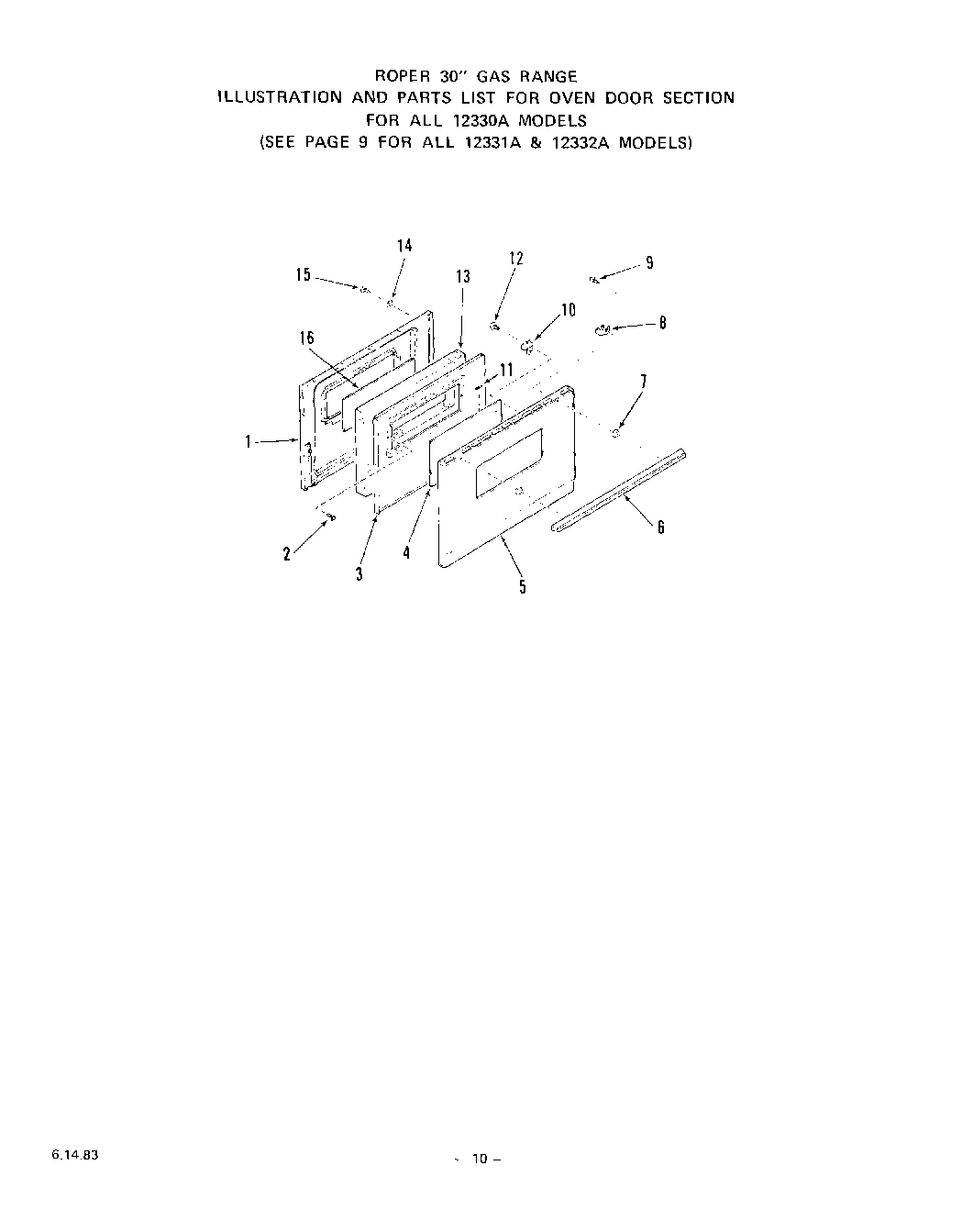

08 - ROTISSERIE , GRIDDLE
02 - MAIN TOP

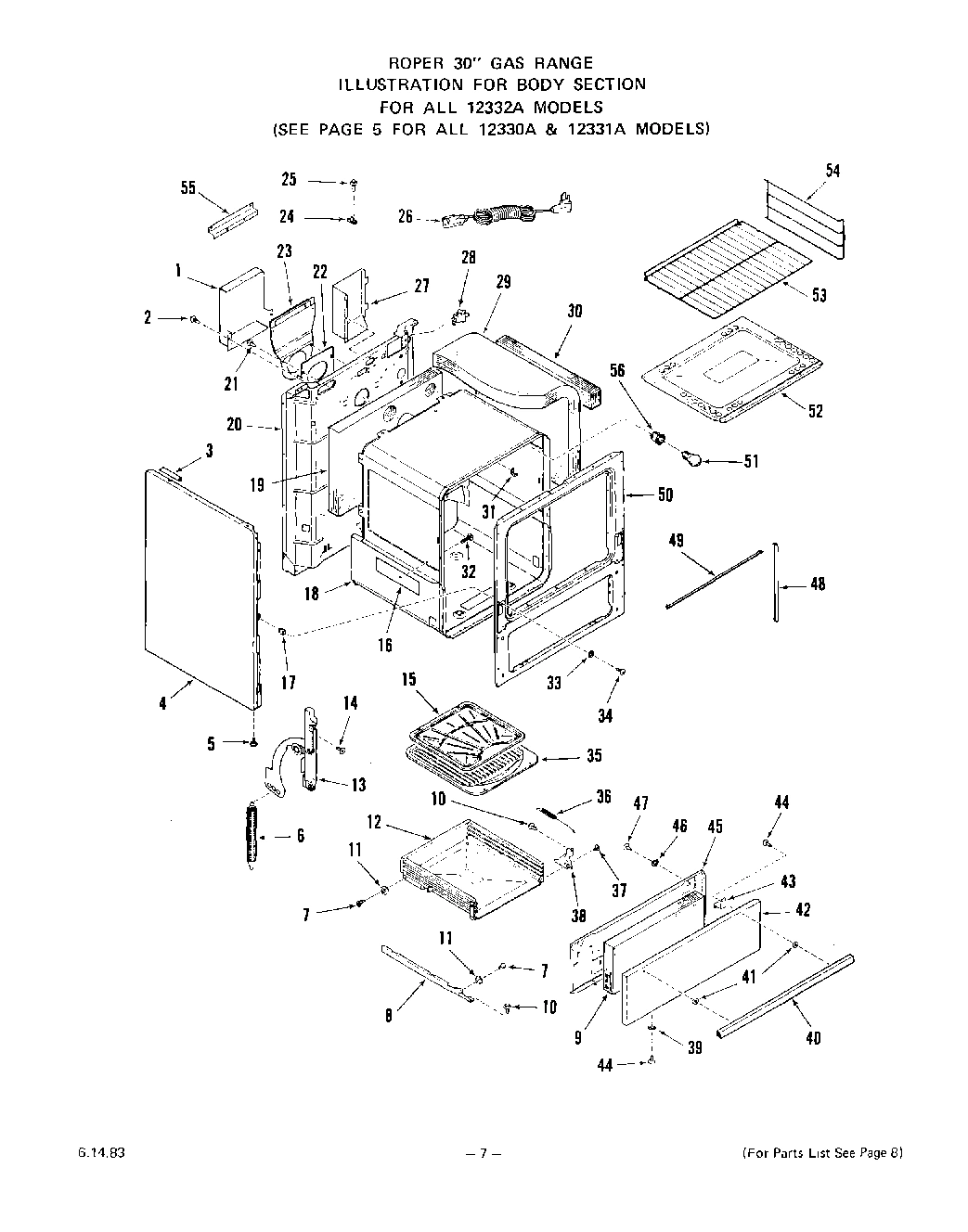

04 - BODY
Common parts from model Whirlpool 1233^1A GAS RANGE
1
Lining - Oven Door WPL 296206 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Top Burner-Rear (Inc. Keys 5 & 6) WPL 310197 Contact Us For Availability
2
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
2
Wire Cover-Backguard WPL 320767 Contact Us For Availability
2
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Spacer-Main Top WPL 303513 Contact Us For Availability
3
Retainer-Insulation WPL 296212 Contact Us For Availability
3
Crosstie WPL 324563 Contact Us For Availability
3
Top Burner-Frt. (Inc. Keys 5 & 6) WPL 310196 Contact Us For Availability
4
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
4
White-Right WPL 323084 Contact Us For Availability
4
White-Left WPL 323085 Contact Us For Availability
4
Golden Wheat-Right WPL 323090 Contact Us For Availability
4
Golden Wheat-Left WPL 323091 Contact Us For Availability
4
Almond-Right WPL 323092 Contact Us For Availability
4
Almond-Left WPL 323093 Contact Us For Availability
4
Body Side WPL ARI7652A80 Contact Us For Availability
4
Outer Glass-Oven Door WPL 302014 Contact Us For Availability
4
Clock Motor WPL 283296 Contact Us For Availability
4
Cup-Top Pilot WPL 308292 Contact Us For Availability
5
Body Side WPL ARI7649A20 Contact Us For Availability
5
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
5
White WPL 310373 Contact Us For Availability
5
Almond WPL 310374 Contact Us For Availability
5
Golden Wheat WPL 310377 Contact Us For Availability
5
Front Panel-Oven Door WPL ARI7657A75 Contact Us For Availability
5
Clock Glass WPL 284183 Contact Us For Availability
5
Screw WPL 301911 Contact Us For Availability
6
Frame-Oven Door WPL 296473 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
6
Handle-Oven Door WPL 292240 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
7
Cushion WPL 112370 Contact Us For Availability
7
Broiler Drawer WPL 305259 Contact Us For Availability
7
Spacer-Door Handle WPL 302343 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
7
Support-Top Burners WPL 308297 Contact Us For Availability
8
Right WPL 296327 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 11) WPL ARI7653A19 Contact Us For Availability
8
Spacer-Oven Door WPL 296224 Contact Us For Availability
8
Clock w/4 Hr. Timer (Inc`s. Keys 4,5,6 & 7) WPL 315261 Contact Us For Availability
8
Compression Nut 1/4`` WPL 4825 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
9
Handle-Oven Door WPL 303342 Contact Us For Availability
9
Compression Ball Sleeve 1/4`` WPL 867 Contact Us For Availability
10
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
10
Retainer-Oven Door Glass WPL 299592 Contact Us For Availability
10
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
10
Filter-Top Pilot WPL 290610 Contact Us For Availability
11
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
11
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
11
Roller WPL 69006 Contact Us For Availability
11
Cushion-Door Glass WPL 282259 Contact Us For Availability
11
Clip (10 Req) WPL 288401 Contact Us For Availability
12
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
12
Insulation WPL 303556 Contact Us For Availability
12
Broiler Drawer (Inc`s. 7 & 11) WPL 303904 Contact Us For Availability
12
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
12
Gasket (5 Req. for Keys 31 & 33) WPL 288186 Contact Us For Availability
13
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
13
Right WPL 303132 Contact Us For Availability
13
Left WPL 303133 Contact Us For Availability
13
Hinge-Oven Door WPL ARI7654A14 Contact Us For Availability
13
Insulation-Oven Door WPL 296142 Contact Us For Availability
13
Bezel-Backguard WPL 310603 Contact Us For Availability
13
Screw (10 Required) WPL 299137 Contact Us For Availability
14
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
14
Washer WPL 21067 Contact Us For Availability
14
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
14
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
15
Washer WPL 310218 Contact Us For Availability
15
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
15
Broiler Pan Grid WPL 313071 Contact Us For Availability
15
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
15
Tubing 3/8`` (Thmst. to Cont. Valve) WPL 315807 Contact Us For Availability
16
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
16
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
16
Push Switch-Oven Light WPL 298793 Contact Us For Availability
17
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
17
Knurled Nut WPL 87403 Contact Us For Availability
17
Burner-Oven (Inc. Keys 22, 23 & 28) WPL 303398 Contact Us For Availability
18
Burner Box Bottom WPL 308300 Contact Us For Availability
18
Oven Body WPL 323854 Contact Us For Availability
18
Screw 10-32x2`` WPL 112365 Contact Us For Availability
19
Knob-Oven Thermostat WPL 320905 Contact Us For Availability
19
Insulation - Oven Back WPL 296140 Contact Us For Availability
19
Control Valve (Inc. Keys 24 & 25) WPL 294529 Contact Us For Availability
20
Knob-Gas Valve (4 Required) WPL 320904 Contact Us For Availability
20
Main Back WPL 324046 Contact Us For Availability
20
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
21
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
21
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
21
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
22
White WPL 324531 Contact Us For Availability
22
Golden Wheat WPL 324534 Contact Us For Availability
22
Almond WPL 324535 Contact Us For Availability
22
Manifold Panel WPL ARI7647A48 Contact Us For Availability
22
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
22
Air Shutter WPL 239267 Contact Us For Availability
23
Flue Deflector WPL 300917 Contact Us For Availability
23
Screw WPL 239268 Contact Us For Availability
24
Clip WPL 106767 Contact Us For Availability
24
Pilot-Oven (Inc. Key 25) WPL 294528 Contact Us For Availability
25
White WPL 316813 Contact Us For Availability
25
Almond WPL 316814 Contact Us For Availability
25
Golden Wheat WPL 316815 Contact Us For Availability
25
Main Top WPL ARI7648A82 Contact Us For Availability
25
Orifice Cup WPL 113117 Contact Us For Availability
26
Clamp WPL 285945 Contact Us For Availability
26
Range Service Cord WPL 235822 Contact Us For Availability
26
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
27
Support-Main Top WPL 315379 Contact Us For Availability
27
Wire Shield WPL 296025 Contact Us For Availability
27
Tubing 3/16`` (Thermostat to Pilot) WPL 322447 Contact Us For Availability
28
Disconnect WPL 232150 Contact Us For Availability
28
Hinge-Oven Door WPL ARI7650A44 Contact Us For Availability
28
Baffle - Oven Burner WPL 302729 Contact Us For Availability
29
Keps Nut WPL 239764 Contact Us For Availability
29
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
29
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
30
Washer WPL 99279 Contact Us For Availability
30
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
31
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
31
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
31
Thermostat-Inc. Keys 12 & 32) WPL 302727 Contact Us For Availability
32
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
32
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
32
Fitting WPL 303503 Contact Us For Availability
33
Washer WPL 303963 Contact Us For Availability
33
Gas Valve (4 Required-Inc`s. Key 12) WPL 324988 Contact Us For Availability
34
Front Panel-Broiler Drawer WPL ARI7651A68 Contact Us For Availability
34
Manifold Pipe WPL 308323 Contact Us For Availability
35
Strike-Broiler Door WPL 299784 Contact Us For Availability
35
Broiler Pan WPL 290171 Contact Us For Availability
36
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
36
Pressure Regulator WPL 324529 Contact Us For Availability
37
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
37
Shoulder Rivet WPL 305064 Contact Us For Availability
37
Pilot Tube (Inc. Keys 8 & 9) WPL 325683 Contact Us For Availability
38
Right WPL 296124 Contact Us For Availability
38
Left WPL 296125 Contact Us For Availability
38
Hinge-Broiler Door WPL ARI7655A86 Contact Us For Availability
39
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
42
White WPL 296131 Contact Us For Availability
42
Almond WPL 308346 Contact Us For Availability
42
Golden Wheat WPL 308977 Contact Us For Availability
42
Front Panel-Broiler Door WPL ARI7656A76 Contact Us For Availability
43
Spacer-Broil WPL 296137 Contact Us For Availability
45
WPL 296332 WPL 296332 Contact Us For Availability
48
WPL 314573 WPL 314573 Contact Us For Availability
49
WPL 314574 WPL 314574 Contact Us For Availability
50
WPL 316994 WPL 316994 Contact Us For Availability
50
WPL 69603 WPL 69603 Contact Us For Availability
51
WPL 111257 WPL 111257 Contact Us For Availability
51
WPL 302267 WPL 302267 Contact Us For Availability
52
WPL 296070 WPL 296070 Contact Us For Availability
53
WPL 305408 WPL 305408 Contact Us For Availability
54
WPL 305409 WPL 305409 Contact Us For Availability
55
WPL 301624 WPL 301624 Contact Us For Availability
56
WPL 87883 WPL 87883 Contact Us For Availability
× ![]()
